Gikfun ARDUINO PROTO PROTOTYPE SHIELD DIY KIT FOR Arduino UNO R3(PACK OF 3 SETS)
Gikfun ARDUINO PROTO PROTOTYPE SHIELD DIY KIT FOR Arduino UNO R3(PACK OF 3 SETS)
Gikfun

Gikfun ARDUINO PROTO PROTOTYPE SHIELD DIY KIT FOR Arduino UNO R3(PACK OF 3 SETS)

Regular price $13.48 Sale price $13.99 Unit price per
The Prototyping Shield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard (not included) to quickly test circuit ideas without having to solder. It's got extra connections for all of the Arduino I/O pins, and it's got space to mount through-hole and surface mount integrated circuits. It's a convenient way to make your custom circuit and Arduino into a single module.
Summary

A wide prototyping area with some extra features:
1.0 Arduino pinout
1 Reset button
1 ICSP connector
14 pin SMD footprint (50 mils pitch)
20 pin Through Hole footprint (100 mils pitch)

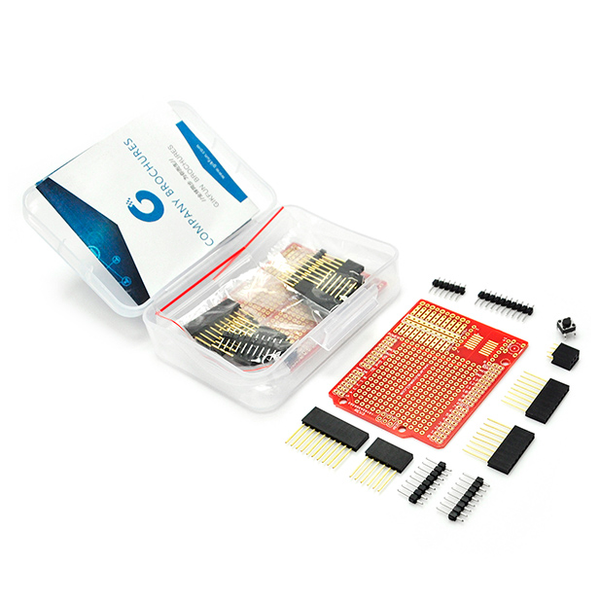

1 Set Packing List:

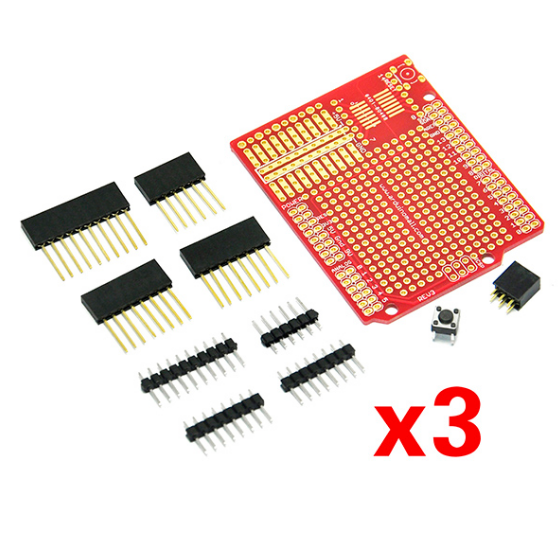

1 PCB Board for Arduino Prototype Shield(not assembled as shown in the picture)
2PCS 1x8 2.54 Female Header Breakaway (12MM long foot)
1PC 1x6 2.54 Female Header Breakaway(12MM long foot)
1PC 1x10 2.54 Female Header Breakaway(12MM long foot)
2PCS 1x8 2.54 Male Header Breakaway
1PC 1x6 2.54 Male Header Breakaway
1PC 1x10 2.54 Male Header Breakaway
1PC 2x3 2.54 Feamale Header Breakaway
1PC Reset Button
